RevX X-FLOW Cold Plunge Filtration System

Unmatched Water Quality: Combination of UV sanitation and fine filtration prevents biofilm formation.

Minimal Maintenance: Designed for 24/7, low-maintenance operation—ideal for residential and commercial, high-use tubs.

Durable & Safe: Engineered for outdoor/indoor use with IPX4-rated components, built to withstand daily use.

The RevX X-FLOW Filtration System is a professional-grade water management solution designed specifically for cold plunge tubs and ice baths.

Built to provide continuous circulation, sanitation, and filtration, the system helps maintain clean, clear water while reducing the need for frequent water changes and manual maintenance.

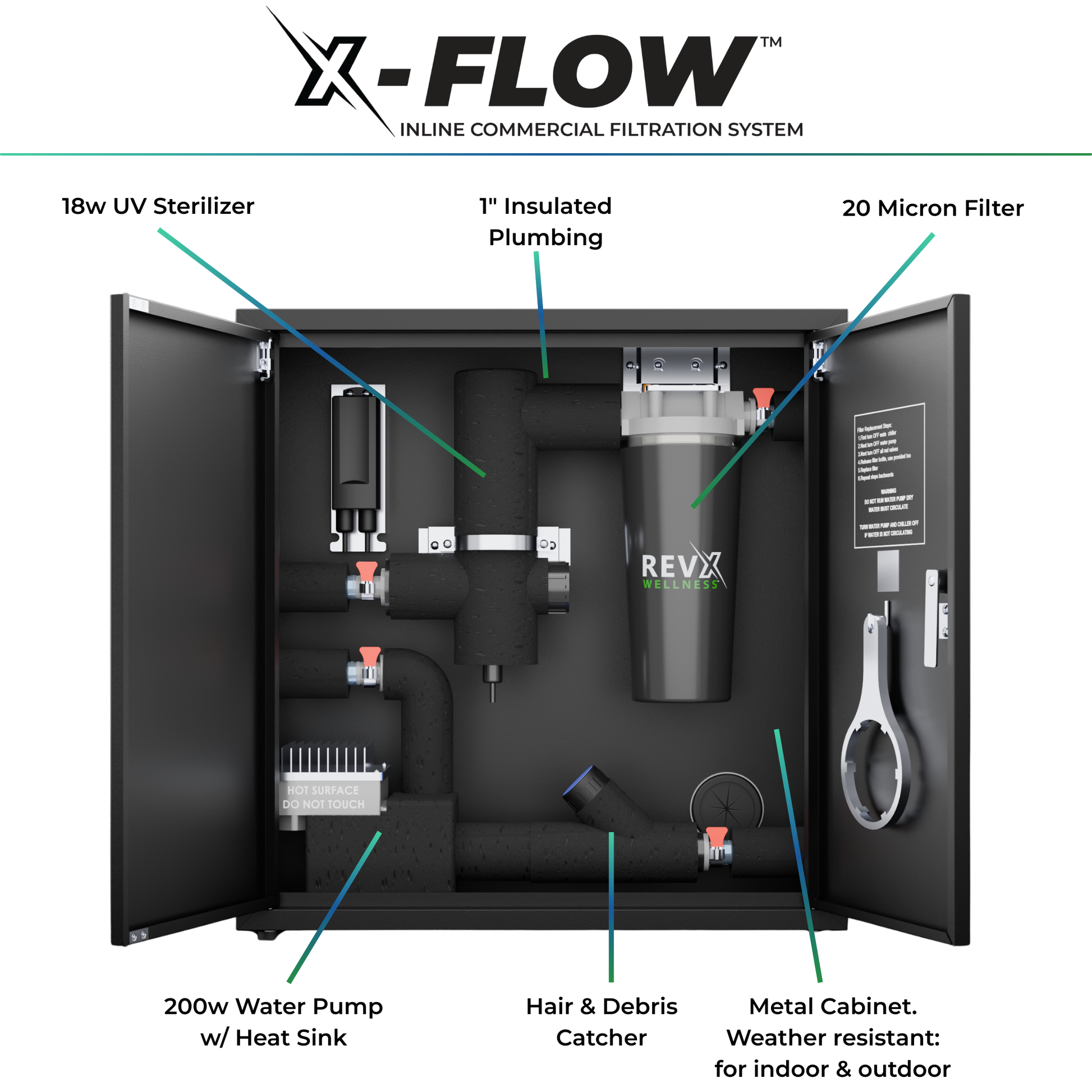

Its modular design separates filtration components from the chiller, allowing for improved serviceability, stronger performance, and easier long-term maintenance.

At the heart of the system is a high-efficiency 200W water pump capable of delivering approximately 2,700+ gallons per hour of water flow. This powerful circulation helps improve water turnover, maintain consistent temperatures, and break up the body's thermal barrier during cold immersion for a more effective plunge experience.

An integrated heat sink helps minimize heat transfer from the pump, allowing the water to remain colder while reducing strain on the chiller system.

For water sanitation, the X-FLOW utilizes an 18W UV-C sterilizer that helps destroy bacteria, algae, and other microorganisms without relying on harsh chemicals. This chemical-free approach helps maintain cleaner water while creating a more comfortable and skin-friendly cold plunge environment.

Water clarity is maintained through a commercial-grade 20-micron pleated filter cartridge that captures hair, debris, skin cells, and sediment while maintaining strong water flow. The filtration system is designed for continuous operation and can be serviced easily by replacing the filter cartridge as needed.

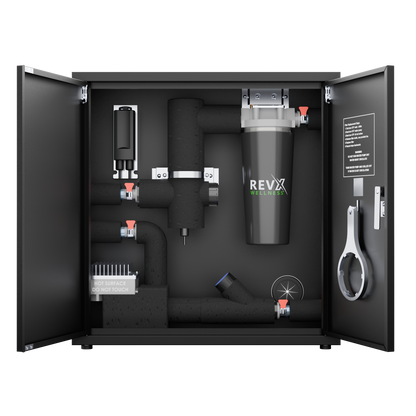

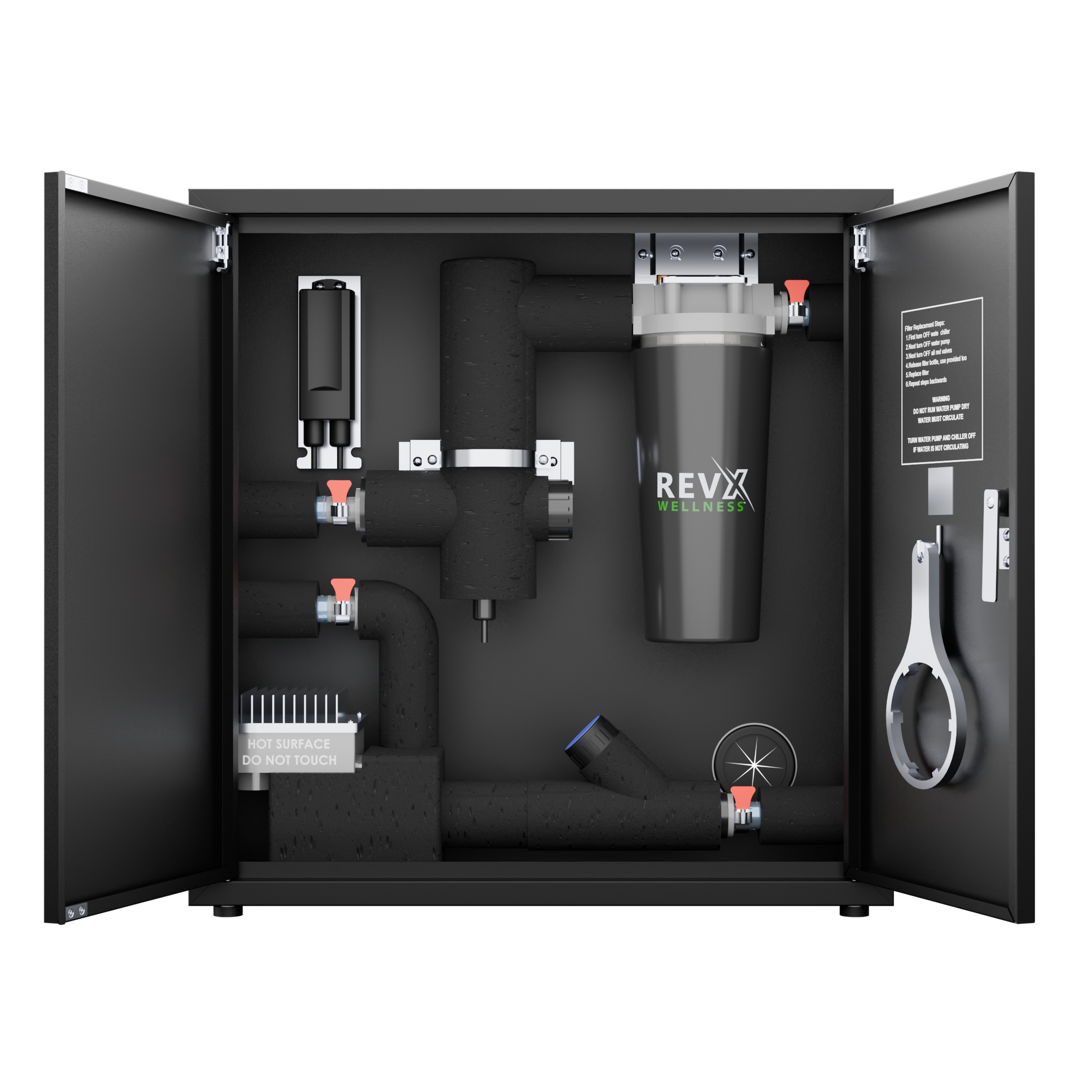

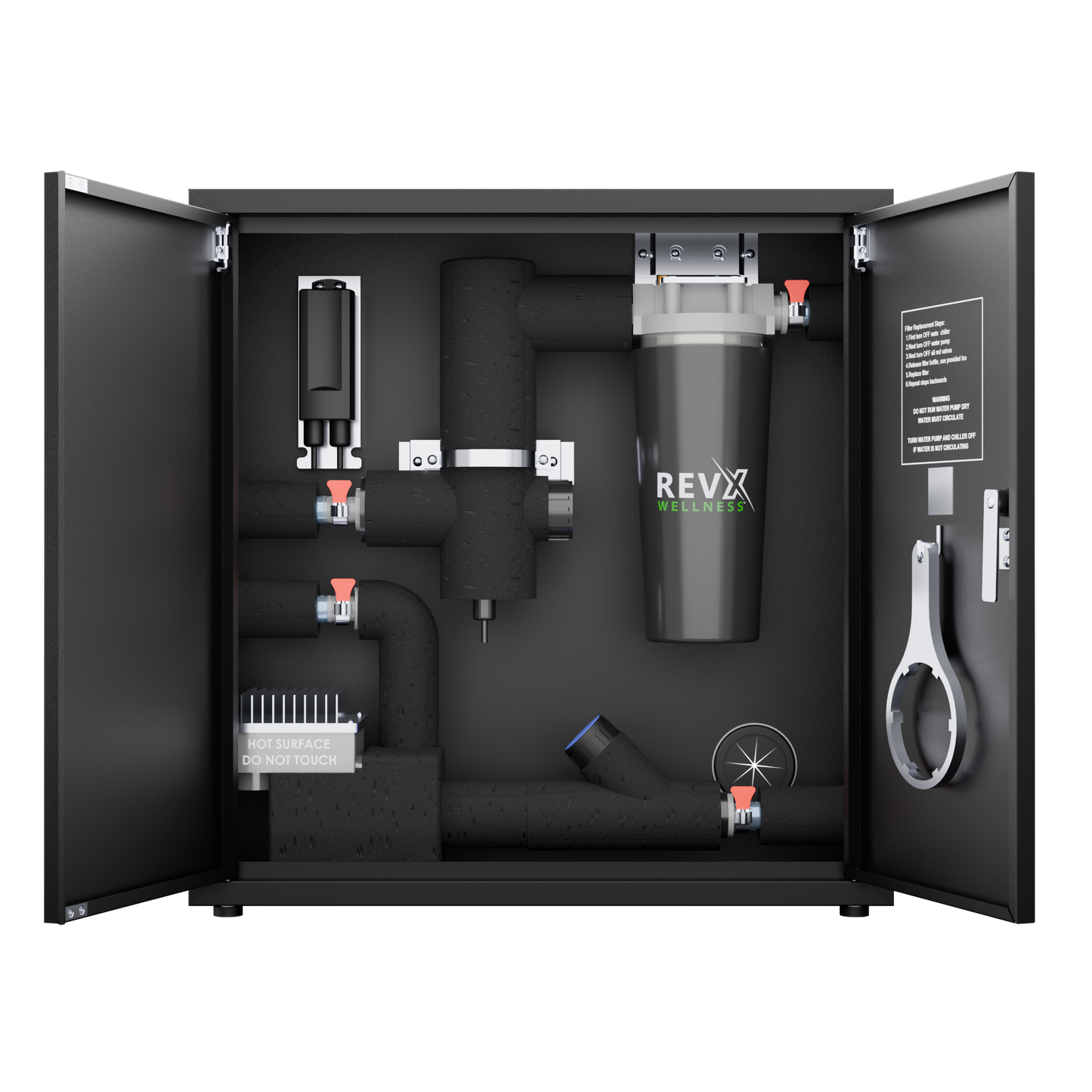

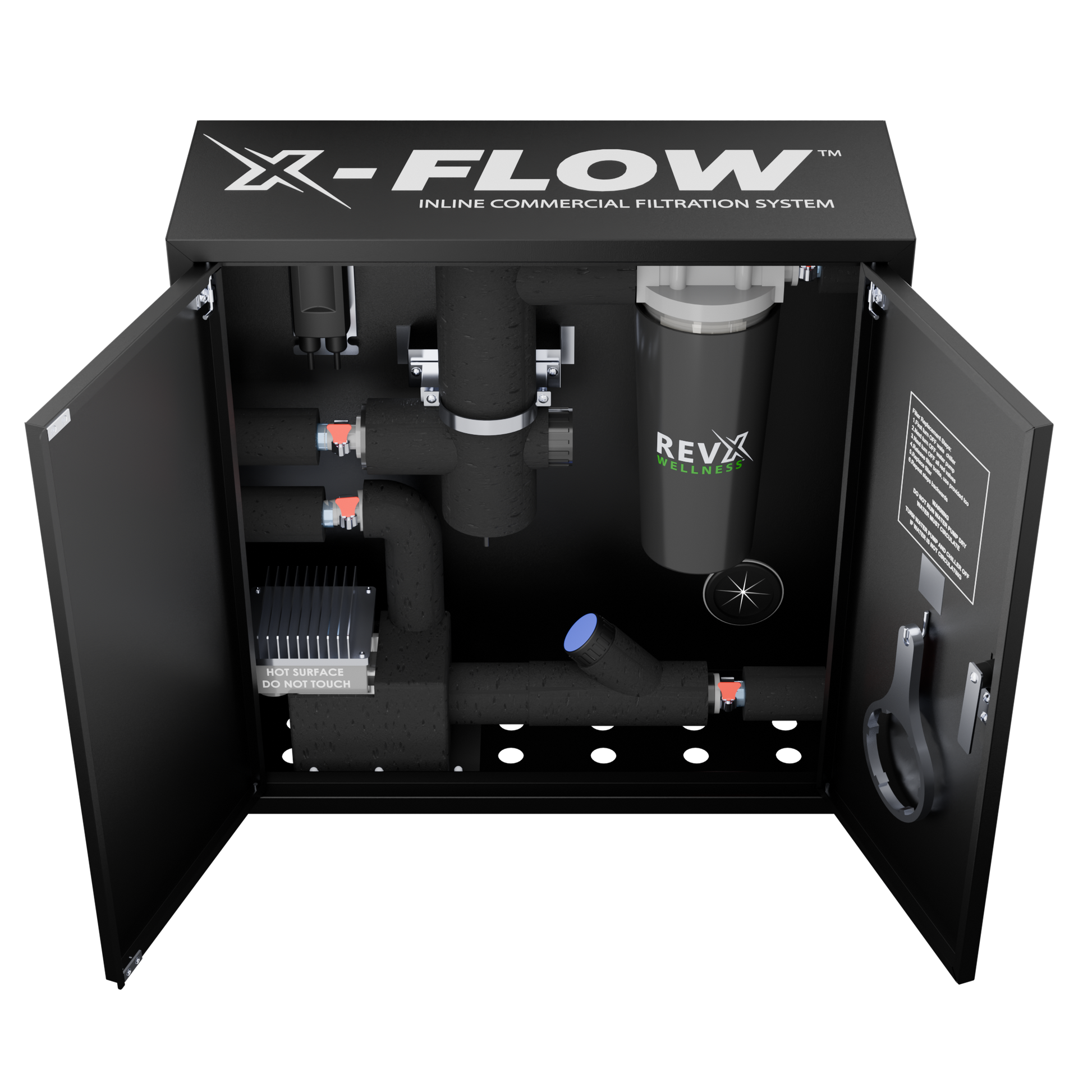

The entire system arrives pre-assembled and housed within a durable cabinet designed for both indoor and outdoor use.

Featuring universal 1-inch plumbing barb connectors and plug-and-play installation, the X-FLOW is compatible with a wide variety of cold plunge tubs and chilling systems.

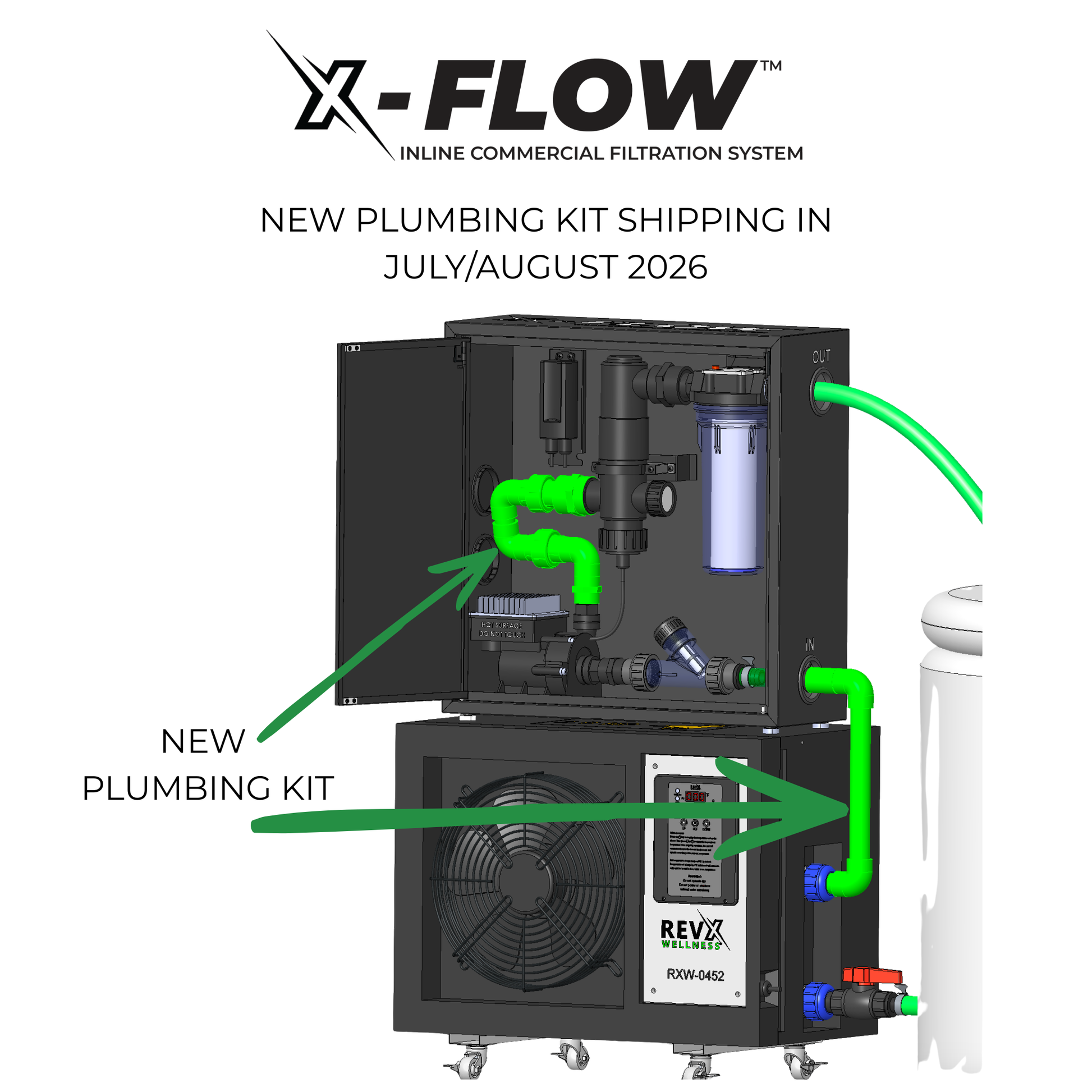

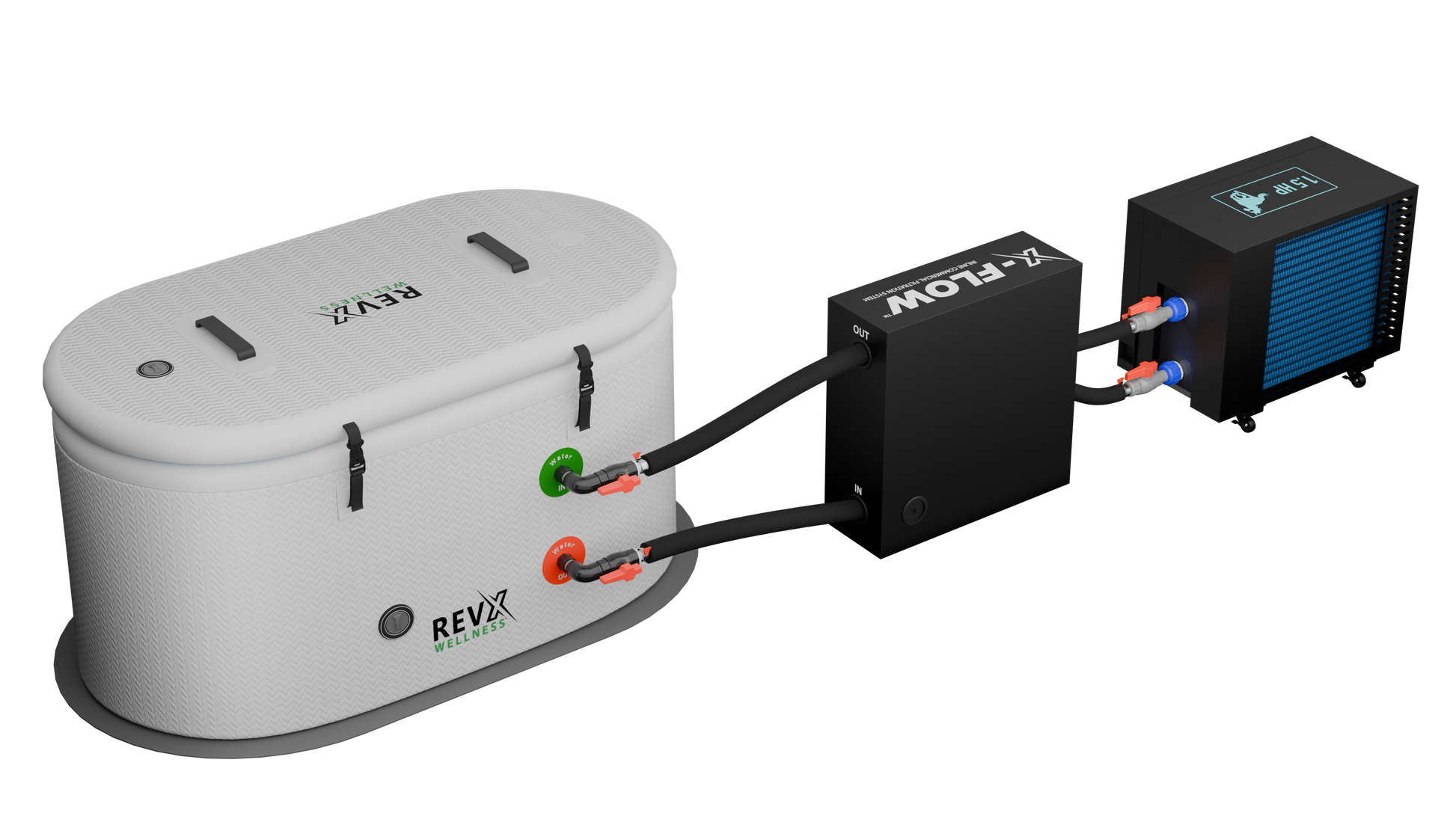

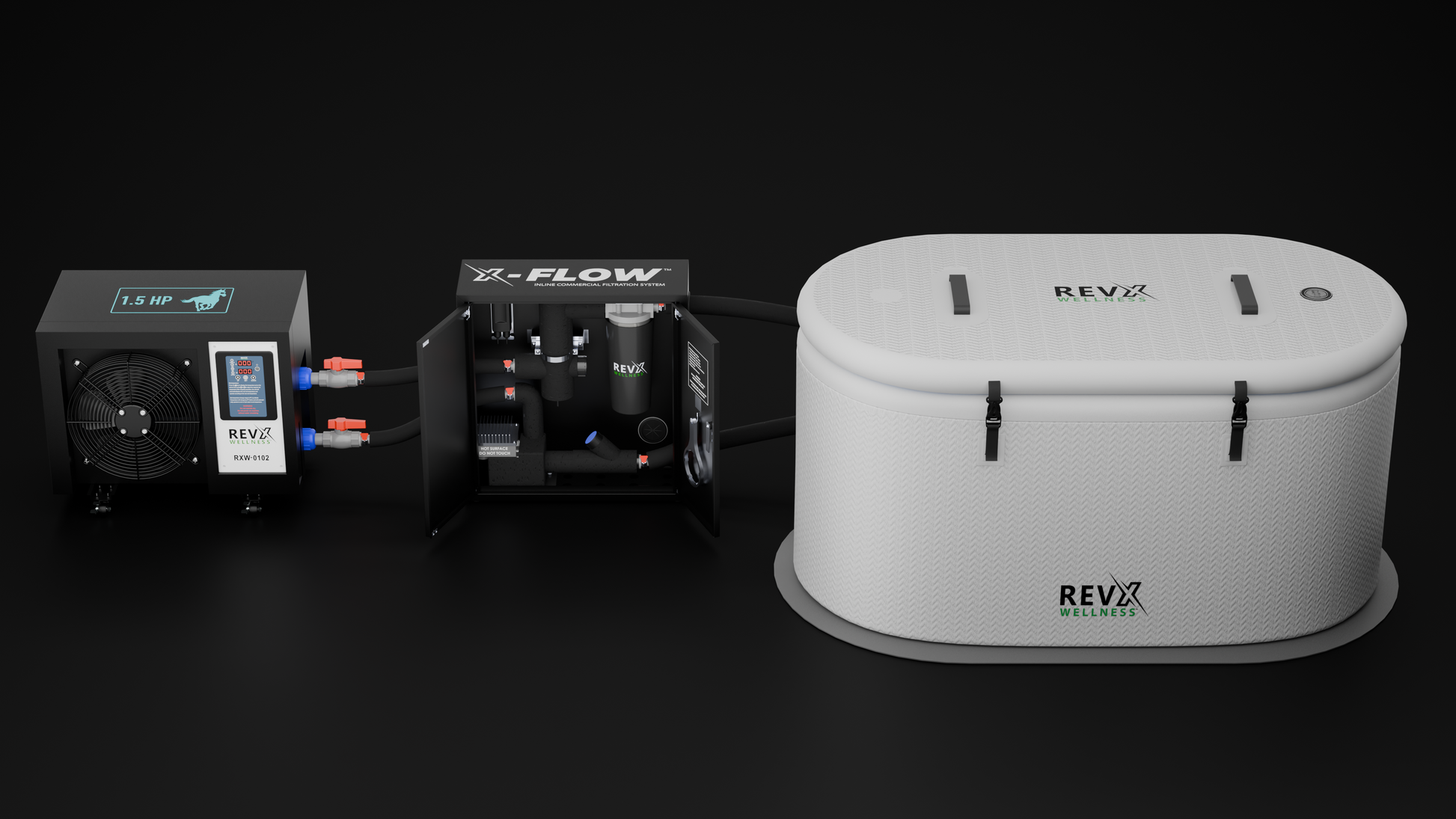

The patent-pending 3-part system design allows the chiller, filtration, and tub components to operate independently, improving reliability and simplifying future maintenance or upgrades.

Pump: 200W with heat sink (High Efficiency)

UV Sterilizer: 18 Watt

Filter Type: 20 Micron Pleated Cartridge (10-inch)

Flow Rate: Approx. 2720+ Gallons per Hour (GPH) actual throughput

Compatibility: Universal 1" Plumbing Barb Connectors

Pump: 200W with heat sink (High Efficiency)

UV Sterilizer: 18 Watt

Filter Type: 20 Micron Pleated Cartridge (10-inch)

Flow Rate: Approx. 2720+ Gallons per Hour (GPH) actual throughput

Compatibility: Universal 1" Plumbing Barb Connectors

Q: What does the RevX X-FLOW Filtration System do?

A: The X-FLOW provides continuous water circulation, UV sanitation, and mechanical filtration to help keep cold plunge water clean, clear, and ready for use.

Q: Does the system include a chiller?

A: No. The X-FLOW is a dedicated filtration and sanitation system and must be paired with a compatible cold plunge chiller if active cooling is desired.

Q: How does the UV sanitation system work?

A: The built-in 18W UV-C sterilizer helps eliminate bacteria, algae, and other microorganisms by disrupting their DNA as water passes through the system.

Q: What type of filtration does it use?

A: The X-FLOW uses a 20-micron pleated filter cartridge that captures fine debris, hair, sediment, and other contaminants while maintaining strong water flow.

Q: How powerful is the circulation pump?

A: The system features a 200W high-flow pump capable of approximately 2,700+ gallons per hour of water circulation.

Q: Is the system compatible with most cold plunge tubs?

A: Yes. The X-FLOW uses universal 1-inch plumbing barb connectors and is designed to work with many cold plunge tubs and chilling systems.

Q: Is the system difficult to install?

A: No. The unit arrives pre-assembled and is designed as a plug-and-play system that can typically be installed in about an hour.

Q: Can the system be used outdoors?

A: Yes. The X-FLOW is designed for both indoor and outdoor installations using weather-resistant components.

Q: What electrical requirements does the system have?

A: The X-FLOW uses two standard 110V plugs for the pump and UV sterilizer and has a combined electrical draw of approximately 3 amps.

Q: How often should the filter be replaced?

A: RevX recommends replacing the filter cartridge approximately every 2–4 weeks depending on usage and water conditions.

Q: Does the system require plumbing?

A: No permanent plumbing is required. The system operates as a closed-loop setup and can be connected directly to compatible tubs and chillers.

Before purchasing the RevX X-FLOW Filtration System, it is important to understand that this product is designed to provide filtration, circulation, and UV sanitation only. A separate chiller is required if you want automatic water cooling capabilities.

The X-FLOW is best suited for customers who want commercial-grade water quality management without relying on chemical treatments. The combination of high-flow circulation, UV sterilization, and fine filtration helps reduce maintenance while maintaining consistently cleaner water.

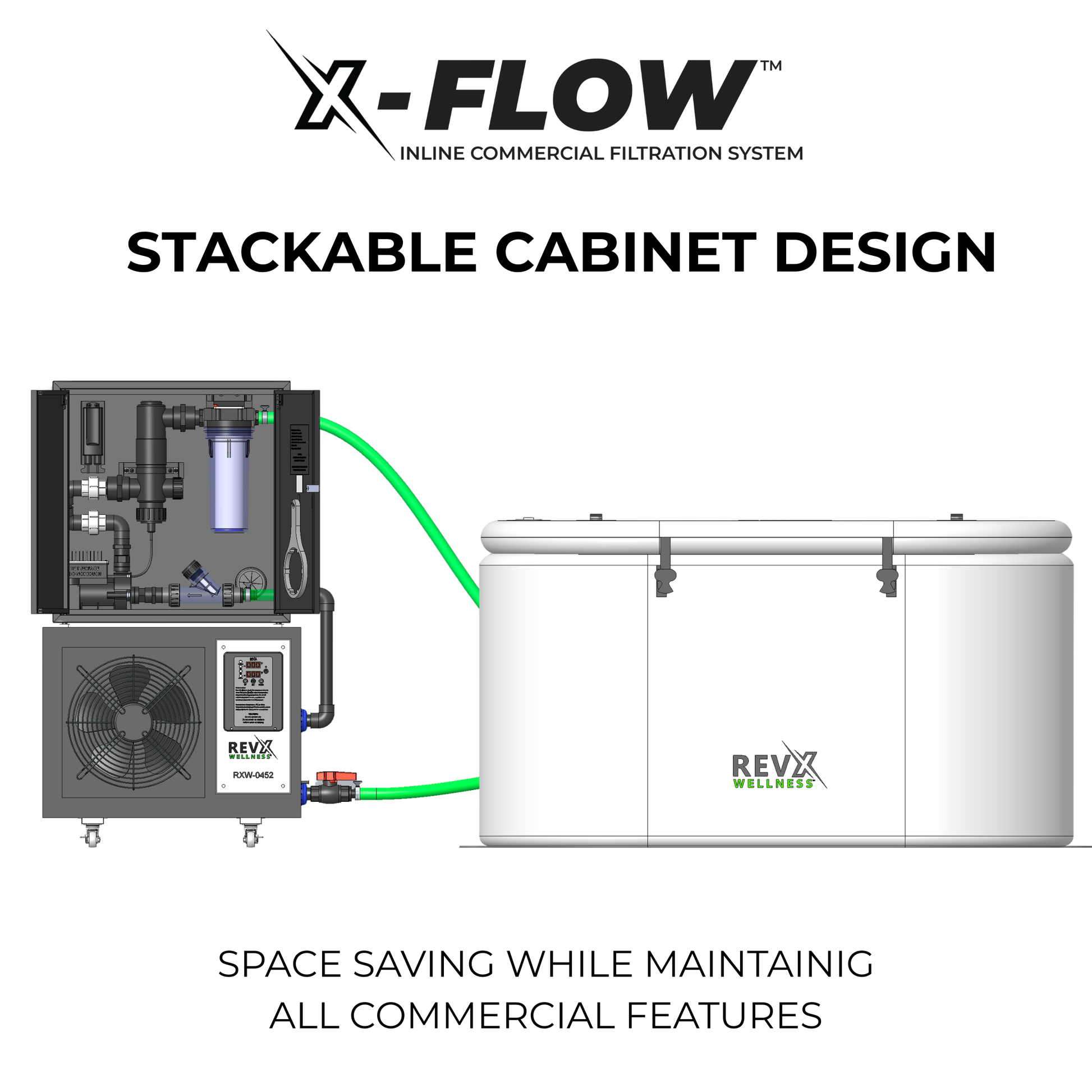

Because the system utilizes a modular design, additional installation space is required compared to many all-in-one chillers. Customers should ensure adequate room for the filtration cabinet and proper airflow around all components before purchasing.

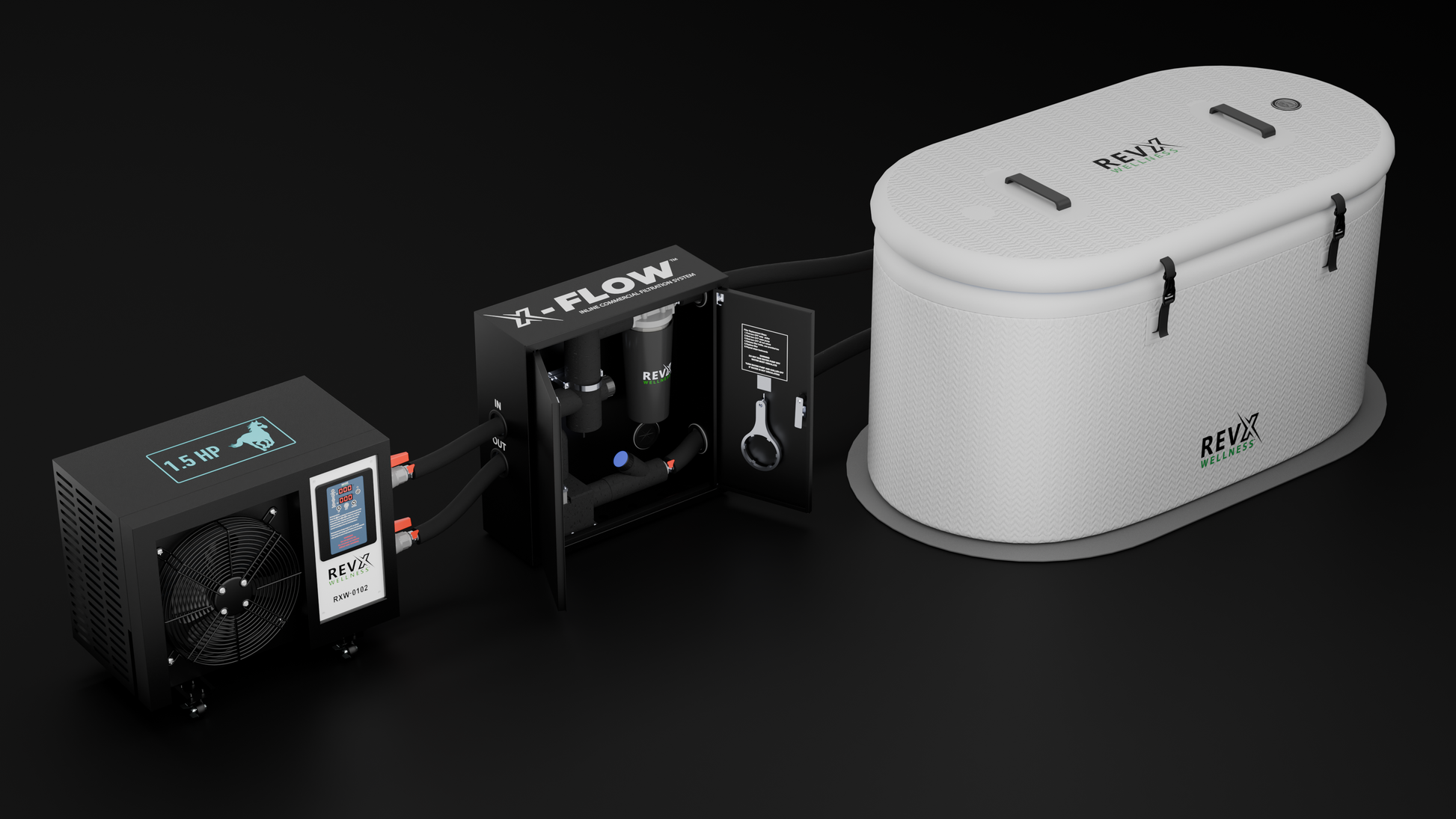

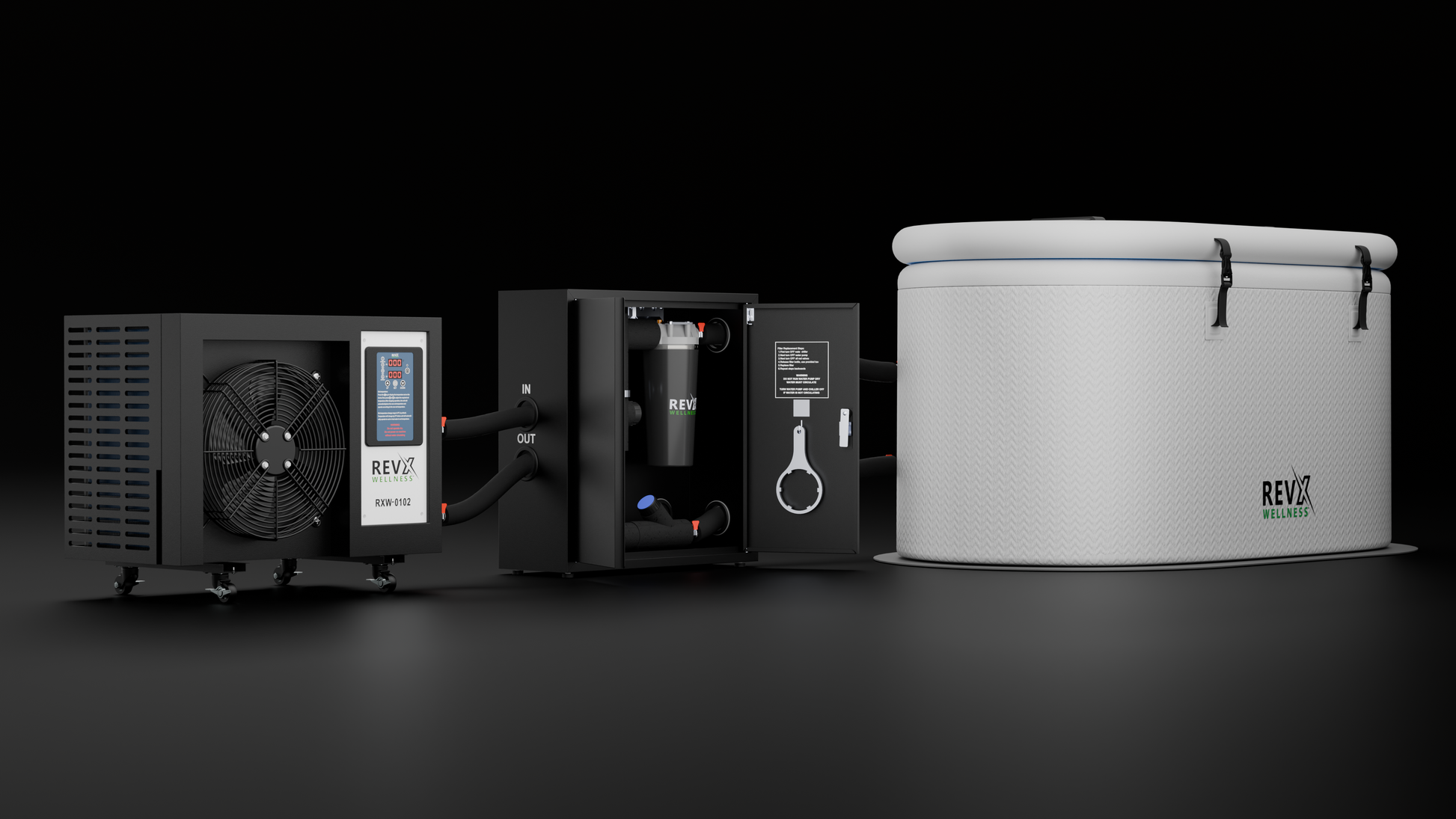

The X-FLOW operates on standard 110V power and is commonly paired with RevX 1.0 HP and 1.5 HP chillers using a dedicated 15A circuit. Customers should verify electrical capacity before installation.

This system is an excellent option for DIY cold plunge builders, existing cold plunge owners seeking improved water quality, and customers who prefer a modular approach that allows individual components to be serviced or upgraded over time.

The RevX X-FLOW Filtration System ships fully assembled and ready for installation, reducing setup complexity and minimizing the need for additional plumbing work.

The package includes the complete filtration cabinet, high-flow circulation pump, UV sterilizer, filter housing, filter cartridge, plumbing fittings, and connection hardware required for installation.

Customers should inspect all components upon arrival and report any visible shipping damage before installation. Ensuring all included fittings and accessories are present can help prevent setup delays.

Because the system is designed as a modular component, customers should plan their installation layout before delivery to ensure adequate spacing between the filtration system, cold plunge tub, and chiller. Proper placement can improve service accessibility and long-term performance.
